satdump::handlers::Handler Class Reference

SatDump's handler base class. More...

#include <handler.h>

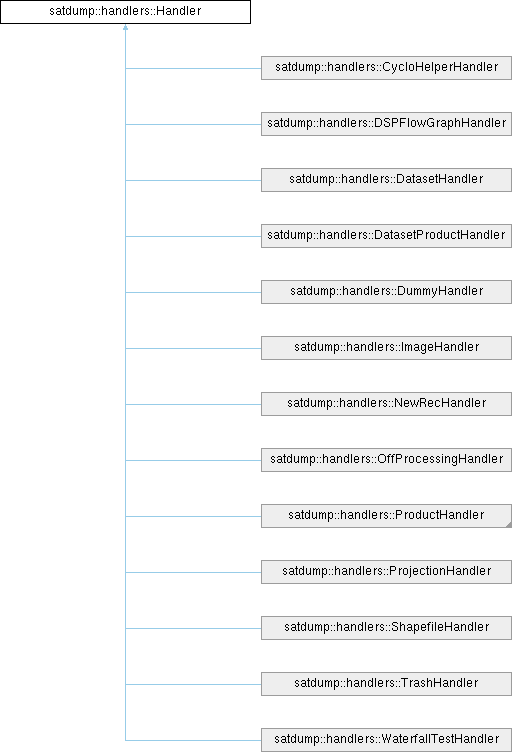

Inheritance diagram for satdump::handlers::Handler:

Public Member Functions
virtual void	drawMenu ()=0
	Render explorer menu left sidebar.
virtual void	drawContents (ImVec2 win_size)=0
	Render explorer contents (center/left)
virtual void	drawMenuBar ()
	Render explorer menu bar (in the left sidebar)
virtual bool	drawTreeMenu (std::shared_ptr< Handler > &h)
	Render explorer menu bar (in the left sidebar)
virtual std::string	getName ()
	Get this handler's readable name.
std::string	getTreeID ()
	Get this handler's ImGui ID for rendering in the tree.
bool	hasSubhandlers ()
	Check if this handler contains any sub-handlers.
virtual void	addSubHandler (std::shared_ptr< Handler > handler, bool ontop=false)
	Add a new subhandler.
virtual void	delSubHandler (std::shared_ptr< Handler > handler, bool now=false)
	Delete a subhandler.
virtual std::vector< std::shared_ptr< Handler > >	getAllSubHandlers ()
	Get all current subhandlers.
void	setCanBeSelected (bool v)
	Set if a handler can be select in the tree.
void	setCanBeDragged (bool v)
	Set if a handler can be dragged around in the tree.
void	setCanBeDraggedTo (bool v)
	Set if a handler can be dragged to in the tree.
void	setSubHandlersCanBeDragged (bool v)
	Set if a handler's subhandlers can be dragged to in the tree.
void	setCanSubBeReorgTo (bool v)
	Set if a handler's subhandlers can be reordered.
virtual void	setConfig (nlohmann::json p)
	Optional, allows setting a configuration/state from JSON.
virtual nlohmann::json	getConfig ()
	Optional, allows getting a configuration/state as JSON.
virtual void	resetConfig ()
	Optional, allows resetting the handler's configuration.
virtual std::string	getID ()=0

Public Attributes
std::string	handler_tree_icon = "N"

Protected Attributes
std::vector< std::shared_ptr< Handler > >	subhandlers
std::mutex	subhandlers_mtx

Detailed Description

SatDump's handler base class.

Handlers are meant to handle displaying and maniipulating data inside the explorer. To avoid code duplication, they may also serve as headless processors.

This implements all basic UI functions and handler tree system, as it is intended for handlers to be able to contain any other handler as a dependency.

Member Function Documentation

addSubHandler()

void satdump::handlers::Handler::addSubHandler ( std::shared_ptr< Handler > handler, bool ontop = false )

virtual

Add a new subhandler.

Parameters

handler	the handler to add
ontop	if true, adds the handler at the start of the list

Reimplemented in satdump::handlers::ImageProductHandler, satdump::handlers::PunctiformProductHandler, and satdump::handlers::TrashHandler.

delSubHandler()

void satdump::handlers::Handler::delSubHandler ( std::shared_ptr< Handler > handler, bool now = false )

virtual

Delete a subhandler.

Parameters

handler

the handler to delete

Reimplemented in satdump::handlers::ImageProductHandler, satdump::handlers::ProjectionHandler, and satdump::handlers::PunctiformProductHandler.

drawContents()

virtual void satdump::handlers::Handler::drawContents ( ImVec2 win_size )

pure virtual

Render explorer contents (center/left)

Implemented in satdump::handlers::CycloHelperHandler, satdump::handlers::DatasetHandler, satdump::handlers::DatasetProductHandler, satdump::handlers::DSPFlowGraphHandler, satdump::handlers::DummyHandler, satdump::handlers::ImageHandler, satdump::handlers::ImageProductHandler, satdump::handlers::NewRecHandler, satdump::handlers::OffProcessingHandler, satdump::handlers::ProjectionHandler, satdump::handlers::PunctiformProductHandler, satdump::handlers::ShapefileHandler, satdump::handlers::TrashHandler, and satdump::handlers::WaterfallTestHandler.

drawMenu()

virtual void satdump::handlers::Handler::drawMenu ( )

pure virtual

Render explorer menu left sidebar.

Implemented in satdump::handlers::CycloHelperHandler, satdump::handlers::DatasetHandler, satdump::handlers::DatasetProductHandler, satdump::handlers::DSPFlowGraphHandler, satdump::handlers::DummyHandler, satdump::handlers::ImageHandler, satdump::handlers::ImageProductHandler, satdump::handlers::NewRecHandler, satdump::handlers::OffProcessingHandler, satdump::handlers::ProjectionHandler, satdump::handlers::PunctiformProductHandler, satdump::handlers::ShapefileHandler, satdump::handlers::TrashHandler, and satdump::handlers::WaterfallTestHandler.

drawMenuBar()

virtual void satdump::handlers::Handler::drawMenuBar ( )

inlinevirtual

Render explorer menu bar (in the left sidebar)

Reimplemented in satdump::handlers::ImageHandler, satdump::handlers::ImageProductHandler, satdump::handlers::ProjectionHandler, satdump::handlers::PunctiformProductHandler, satdump::handlers::ShapefileHandler, and satdump::handlers::TrashHandler.

drawTreeMenu()

bool satdump::handlers::Handler::drawTreeMenu ( std::shared_ptr< Handler > & h )

virtual

Render explorer menu bar (in the left sidebar)

Parameters

h	currently selected handler, to be replaced if another is selected

Returns

true if the handler provided is present in the tree

Reimplemented in satdump::handlers::ImageProductHandler, and satdump::handlers::PunctiformProductHandler.

getAllSubHandlers()

std::vector< std::shared_ptr< Handler > > satdump::handlers::Handler::getAllSubHandlers ( )

virtual

Get all current subhandlers.

Returns

List of all subhandlers

getConfig()

nlohmann::json satdump::handlers::Handler::getConfig ( )

virtual

Optional, allows getting a configuration/state as JSON.

Returns

JSON object

Reimplemented in satdump::handlers::ImageHandler, satdump::handlers::ImageProductHandler, satdump::handlers::ProjectionHandler, satdump::handlers::PunctiformProductHandler, satdump::handlers::ShapefileHandler, and satdump::handlers::TrashHandler.

getName()

virtual std::string satdump::handlers::Handler::getName ( )

inlinevirtual

Get this handler's readable name.

Returns

name as a string

Reimplemented in satdump::handlers::CycloHelperHandler, satdump::handlers::DatasetHandler, satdump::handlers::DatasetProductHandler, satdump::handlers::DSPFlowGraphHandler, satdump::handlers::DummyHandler, satdump::handlers::ImageHandler, satdump::handlers::NewRecHandler, satdump::handlers::OffProcessingHandler, satdump::handlers::ProductHandler, satdump::handlers::ProjectionHandler, satdump::handlers::ShapefileHandler, satdump::handlers::TrashHandler, and satdump::handlers::WaterfallTestHandler.

getTreeID()

std::string satdump::handlers::Handler::getTreeID ( )

inline

Get this handler's ImGui ID for rendering in the tree.

Returns

ID as a string

hasSubhandlers()

bool satdump::handlers::Handler::hasSubhandlers

(

)

Check if this handler contains any sub-handlers.

Returns

true if subhandlers are present

resetConfig()

virtual void satdump::handlers::Handler::resetConfig ( )

inlinevirtual

Optional, allows resetting the handler's configuration.

Reimplemented in satdump::handlers::ImageHandler, and satdump::handlers::ImageProductHandler.

setCanBeDragged()

void satdump::handlers::Handler::setCanBeDragged ( bool v )

inline

Set if a handler can be dragged around in the tree.

Parameters

v	true to have it be draggable

setCanBeDraggedTo()

void satdump::handlers::Handler::setCanBeDraggedTo ( bool v )

inline

Set if a handler can be dragged to in the tree.

Parameters

v	true to have it be a valid drag target

setCanBeSelected()

void satdump::handlers::Handler::setCanBeSelected ( bool v )

inline

Set if a handler can be select in the tree.

Parameters

v	true to have it be selectable

setCanSubBeReorgTo()

void satdump::handlers::Handler::setCanSubBeReorgTo ( bool v )

inline

Set if a handler's subhandlers can be reordered.

Parameters

v	true to have them be reorderable

setConfig()

virtual void satdump::handlers::Handler::setConfig ( nlohmann::json p )

inlinevirtual

Optional, allows setting a configuration/state from JSON.

Parameters

p	JSON object

Reimplemented in satdump::handlers::ImageHandler, satdump::handlers::ImageProductHandler, satdump::handlers::ProjectionHandler, satdump::handlers::PunctiformProductHandler, satdump::handlers::ShapefileHandler, and satdump::handlers::TrashHandler.

setSubHandlersCanBeDragged()

void satdump::handlers::Handler::setSubHandlersCanBeDragged ( bool v )

inline

Set if a handler's subhandlers can be dragged to in the tree.

Parameters

v	true to have them be draggable

---

The documentation for this class was generated from the following files:

• src-core/handlers/handler.h
• src-core/handlers/handler.cpp
