satdump::handlers::ImageProductHandler Class Reference

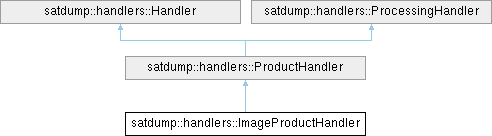

Inheritance diagram for satdump::handlers::ImageProductHandler:

Classes
struct	CalibInfo

Public Member Functions
	ImageProductHandler (std::shared_ptr< products::Product >, bool dataset_mode=false)
void	initOverlayConverters ()
void	do_process ()
	Actual processing function to be implemented by the child class.
void	drawMenu ()
	Render explorer menu left sidebar.
void	drawContents (ImVec2 win_size)
	Render explorer contents (center/left)
void	drawMenuBar ()
	Render explorer menu bar (in the left sidebar)
void	setConfig (nlohmann::json p)
	Optional, allows setting a configuration/state from JSON.
nlohmann::json	getConfig ()
	Optional, allows getting a configuration/state as JSON.
void	resetConfig ()
	Optional, allows resetting the handler's configuration.
void	saveResult (std::string directory)
void	addSubHandler (std::shared_ptr< Handler > handler, bool ontop=false)
	Add a new subhandler.
void	delSubHandler (std::shared_ptr< Handler > handler, bool now=false)
	Delete a subhandler.
bool	drawTreeMenu (std::shared_ptr< Handler > &h)
	Render explorer menu bar (in the left sidebar)
std::string	getID ()
Public Member Functions inherited from satdump::handlers::ProductHandler
nlohmann::json	getInstrumentCfg ()
	ProductHandler (std::shared_ptr< products::Product > p, bool dataset_mode=false, std::function< bool(nlohmann::ordered_json &)> filterPreset=[](auto &) { return true;})
	Constructor.
std::string	getName ()
	Get this handler's readable name.
std::string	getID ()
Public Member Functions inherited from satdump::handlers::Handler
std::string	getTreeID ()
	Get this handler's ImGui ID for rendering in the tree.
bool	hasSubhandlers ()
	Check if this handler contains any sub-handlers.
virtual std::vector< std::shared_ptr< Handler > >	getAllSubHandlers ()
	Get all current subhandlers.
void	setCanBeSelected (bool v)
	Set if a handler can be select in the tree.
void	setCanBeDragged (bool v)
	Set if a handler can be dragged around in the tree.
void	setCanBeDraggedTo (bool v)
	Set if a handler can be dragged to in the tree.
void	setSubHandlersCanBeDragged (bool v)
	Set if a handler's subhandlers can be dragged to in the tree.
void	setCanSubBeReorgTo (bool v)
	Set if a handler's subhandlers can be reordered.
Public Member Functions inherited from satdump::handlers::ProcessingHandler
void	process ()
	Performing processing. This is not multi-threaded, intended to call it externally.
void	set_is_processing (bool v)
	Set the processing status externally, to force waiting before starting a new thread.
void	asyncProcess ()
	Perform processing asynchronously, in a thread.

Public Attributes
std::shared_ptr< ImageHandler >	img_handler
bool	enabled_advanced_menus = false
products::ImageProduct *	product
std::shared_ptr< products::ImageCalibrator >	img_calibrator
bool	needs_to_update = true
std::string	channel_selection_box_str
int	channel_selection_curr_id = 0
bool	images_can_be_calibrated = false
bool	channel_calibrated = false
std::map< int, std::map< std::string, CalibInfo > >	channels_calibrated_ranges
std::string	channels_calibrated_curr_unit
std::vector< std::pair< calibration::UnitInfo, std::shared_ptr< calibration::UnitConverter > > >	channels_calibration_units_and_converters
std::string	expression
float	progress = 0
Public Attributes inherited from satdump::handlers::Handler
std::string	handler_tree_icon = "N"

Additional Inherited Members
Static Public Member Functions inherited from satdump::handlers::ProcessingHandler
static std::string	getID ()
static std::shared_ptr< Handler >	getInstance ()
Protected Member Functions inherited from satdump::handlers::ProductHandler
void	resetPreset ()
std::string	generateFileName ()
bool	renderPresetMenu ()
	Draw preset selection menu.
void	tryApplyDefaultPreset ()
	Attempts to a apply a default preset if present in the configuration.
Protected Attributes inherited from satdump::handlers::ProductHandler
bool	preset_reset_by_handler = false
std::shared_ptr< products::Product >	product
nlohmann::ordered_json	instrument_cfg
std::string	product_internal_name
Protected Attributes inherited from satdump::handlers::Handler
std::vector< std::shared_ptr< Handler > >	subhandlers
std::mutex	subhandlers_mtx
Protected Attributes inherited from satdump::handlers::ProcessingHandler
bool	is_processing = false
std::mutex	is_processing_mtx
std::thread	async_thread

Member Function Documentation

addSubHandler()

void satdump::handlers::ImageProductHandler::addSubHandler ( std::shared_ptr< Handler > handler, bool ontop = false )

inlinevirtual

Add a new subhandler.

Parameters

handler	the handler to add
ontop	if true, adds the handler at the start of the list

Reimplemented from satdump::handlers::Handler.

delSubHandler()

void satdump::handlers::ImageProductHandler::delSubHandler ( std::shared_ptr< Handler > handler, bool now = false )

inlinevirtual

Delete a subhandler.

Parameters

handler

the handler to delete

Reimplemented from satdump::handlers::Handler.

do_process()

void satdump::handlers::ImageProductHandler::do_process ( )

virtual

Actual processing function to be implemented by the child class.

Implements satdump::handlers::ProcessingHandler.

drawContents()

void satdump::handlers::ImageProductHandler::drawContents ( ImVec2 win_size )

virtual

Render explorer contents (center/left)

Implements satdump::handlers::Handler.

drawMenu()

void satdump::handlers::ImageProductHandler::drawMenu ( )

virtual

Render explorer menu left sidebar.

Implements satdump::handlers::Handler.

drawMenuBar()

void satdump::handlers::ImageProductHandler::drawMenuBar ( )

virtual

Render explorer menu bar (in the left sidebar)

Reimplemented from satdump::handlers::Handler.

drawTreeMenu()

bool satdump::handlers::ImageProductHandler::drawTreeMenu ( std::shared_ptr< Handler > & h )

inlinevirtual

Render explorer menu bar (in the left sidebar)

Parameters

h	currently selected handler, to be replaced if another is selected

Returns

true if the handler provided is present in the tree

Reimplemented from satdump::handlers::Handler.

getConfig()

nlohmann::json satdump::handlers::ImageProductHandler::getConfig ( )

virtual

Optional, allows getting a configuration/state as JSON.

Returns

JSON object

Reimplemented from satdump::handlers::Handler.

getID()

std::string satdump::handlers::ImageProductHandler::getID ( )

inlinevirtual

Implements satdump::handlers::Handler.

resetConfig()

void satdump::handlers::ImageProductHandler::resetConfig ( )

inlinevirtual

Optional, allows resetting the handler's configuration.

Reimplemented from satdump::handlers::Handler.

saveResult()

void satdump::handlers::ImageProductHandler::saveResult ( std::string directory )

virtual

Reimplemented from satdump::handlers::ProductHandler.

setConfig()

void satdump::handlers::ImageProductHandler::setConfig ( nlohmann::json p )

virtual

Optional, allows setting a configuration/state from JSON.

Parameters

p	JSON object

Reimplemented from satdump::handlers::Handler.

---

The documentation for this class was generated from the following files:

• src-core/handlers/product/image_product_handler.h
• src-core/handlers/product/image_product_handler.cpp
