satdump::handlers::ProductHandler Class Reference

Product handler base class. More...

#include <product_handler.h>

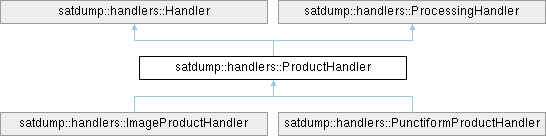

Inheritance diagram for satdump::handlers::ProductHandler:

Public Member Functions
nlohmann::json	getInstrumentCfg ()
virtual void	saveResult (std::string directory)
	ProductHandler (std::shared_ptr< products::Product > p, bool dataset_mode=false, std::function< bool(nlohmann::ordered_json &)> filterPreset=[](auto &) { return true;})
	Constructor.
std::string	getName ()
	Get this handler's readable name.
std::string	getID ()
Public Member Functions inherited from satdump::handlers::Handler
virtual void	drawMenu ()=0
	Render explorer menu left sidebar.
virtual void	drawContents (ImVec2 win_size)=0
	Render explorer contents (center/left)
virtual void	drawMenuBar ()
	Render explorer menu bar (in the left sidebar)
virtual bool	drawTreeMenu (std::shared_ptr< Handler > &h)
	Render explorer menu bar (in the left sidebar)
std::string	getTreeID ()
	Get this handler's ImGui ID for rendering in the tree.
bool	hasSubhandlers ()
	Check if this handler contains any sub-handlers.
virtual void	addSubHandler (std::shared_ptr< Handler > handler, bool ontop=false)
	Add a new subhandler.
virtual void	delSubHandler (std::shared_ptr< Handler > handler, bool now=false)
	Delete a subhandler.
virtual std::vector< std::shared_ptr< Handler > >	getAllSubHandlers ()
	Get all current subhandlers.
void	setCanBeSelected (bool v)
	Set if a handler can be select in the tree.
void	setCanBeDragged (bool v)
	Set if a handler can be dragged around in the tree.
void	setCanBeDraggedTo (bool v)
	Set if a handler can be dragged to in the tree.
void	setSubHandlersCanBeDragged (bool v)
	Set if a handler's subhandlers can be dragged to in the tree.
void	setCanSubBeReorgTo (bool v)
	Set if a handler's subhandlers can be reordered.
virtual void	setConfig (nlohmann::json p)
	Optional, allows setting a configuration/state from JSON.
virtual nlohmann::json	getConfig ()
	Optional, allows getting a configuration/state as JSON.
virtual void	resetConfig ()
	Optional, allows resetting the handler's configuration.
Public Member Functions inherited from satdump::handlers::ProcessingHandler
void	process ()
	Performing processing. This is not multi-threaded, intended to call it externally.
void	set_is_processing (bool v)
	Set the processing status externally, to force waiting before starting a new thread.
void	asyncProcess ()
	Perform processing asynchronously, in a thread.

Protected Member Functions
void	resetPreset ()
std::string	generateFileName ()
bool	renderPresetMenu ()
	Draw preset selection menu.
void	tryApplyDefaultPreset ()
	Attempts to a apply a default preset if present in the configuration.
Protected Member Functions inherited from satdump::handlers::ProcessingHandler
virtual void	do_process ()=0
	Actual processing function to be implemented by the child class.

Protected Attributes
bool	preset_reset_by_handler = false
std::shared_ptr< products::Product >	product
nlohmann::ordered_json	instrument_cfg
std::string	product_internal_name
Protected Attributes inherited from satdump::handlers::Handler
std::vector< std::shared_ptr< Handler > >	subhandlers
std::mutex	subhandlers_mtx
Protected Attributes inherited from satdump::handlers::ProcessingHandler
bool	is_processing = false
std::mutex	is_processing_mtx
std::thread	async_thread

Additional Inherited Members
Static Public Member Functions inherited from satdump::handlers::ProcessingHandler
static std::string	getID ()
static std::shared_ptr< Handler >	getInstance ()
Public Attributes inherited from satdump::handlers::Handler
std::string	handler_tree_icon = "N"

Detailed Description

Product handler base class.

A common usecase of handlers in the explorer is to allow displaying and doing basic manipulation on instrument products.

To this effect, this base class implements the common interface for handling those instrument products.

Parameters

product	raw product pointer, to be cast in the inheriting class
instrument_cfg	TODOREWORK instrument configuration file, for presets

Constructor & Destructor Documentation

ProductHandler()

satdump::handlers::ProductHandler::ProductHandler	(	std::shared_ptr< products::Product >	p,
		bool	dataset_mode = false,
		std::function< bool(nlohmann::ordered_json &)>	filterPreset = [](auto &) { return true; } )

Constructor.

Parameters

p	product to handle
dataset_mode	if true, only displays the instrument name, otherwise adds timestamp and source name for clarity
filterPreset	optional function to filter the presets list

Member Function Documentation

getID()

std::string satdump::handlers::ProductHandler::getID ( )

inlinevirtual

Implements satdump::handlers::Handler.

getName()

std::string satdump::handlers::ProductHandler::getName ( )

inlinevirtual

Get this handler's readable name.

Returns

name as a string

Reimplemented from satdump::handlers::Handler.

renderPresetMenu()

bool satdump::handlers::ProductHandler::renderPresetMenu ( )

protected

Draw preset selection menu.

Returns

if one was selected

---

The documentation for this class was generated from the following files:

• src-core/handlers/product/product_handler.h
• src-core/handlers/product/product_handler.cpp
