satdump::handlers::ProcessingHandler Class Reference

ProcessingHandler base class. More...

#include <processing_handler.h>

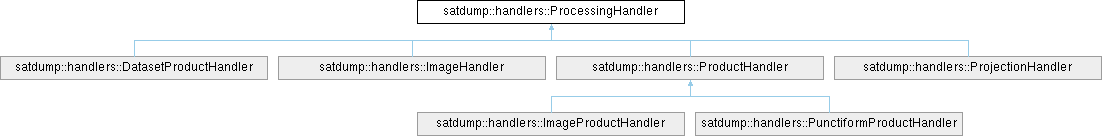

Inheritance diagram for satdump::handlers::ProcessingHandler:

Public Member Functions
void	process ()
	Performing processing. This is not multi-threaded, intended to call it externally.
void	set_is_processing (bool v)
	Set the processing status externally, to force waiting before starting a new thread.
void	asyncProcess ()
	Perform processing asynchronously, in a thread.

Static Public Member Functions
static std::string	getID ()
static std::shared_ptr< Handler >	getInstance ()

Protected Member Functions
virtual void	do_process ()=0
	Actual processing function to be implemented by the child class.

Protected Attributes
bool	is_processing = false
std::mutex	is_processing_mtx
std::thread	async_thread

Detailed Description

ProcessingHandler base class.

Some handlers implement a lot of processing already in order to allow manipulating products, images, or more. Therefore, it'd be stupid not to re-use this code for headless processing as well! :-)

This is a common interface Handlers can implement if required that allows implementing processing in a way common to both the UI and headless uses. This implements the multi-threaded processing required in the UI as well.

Parameters

is_processing

variable to be used in the UI to disable controls while processing is ongoing

Member Function Documentation

do_process()

virtual void satdump::handlers::ProcessingHandler::do_process ( )

protectedpure virtual

Actual processing function to be implemented by the child class.

Implemented in satdump::handlers::DatasetProductHandler, satdump::handlers::ImageProductHandler, satdump::handlers::ProjectionHandler, and satdump::handlers::PunctiformProductHandler.

set_is_processing()

void satdump::handlers::ProcessingHandler::set_is_processing ( bool v )

inline

Set the processing status externally, to force waiting before starting a new thread.

Parameters

v	to set if it's processing or not

---

The documentation for this class was generated from the following file:

• src-core/handlers/processing_handler.h
